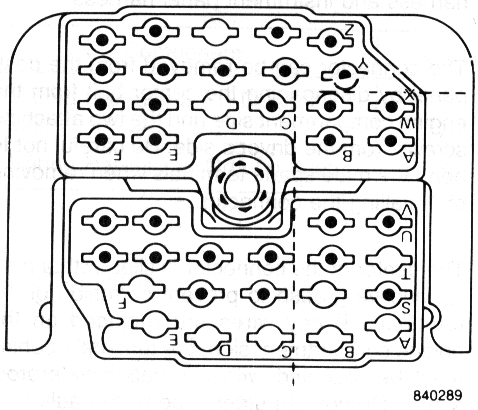

Bulkhead electical connector as viewed from engine compartment
| FZ Rear Defog Idle Kick | EZ Headlight Idle Kick | DZ NONE | CZ A/C Idle Kick | BZ AC Clutch | AZ NONE |
| FY Temperature Gauge | EY +12v to Headlights / Fuse 1 / Fuse 4 and Fuse 7 | DY Oil pressure Lamp | CY +12v to Ignition Switch | BY To Back Up Lamps | AY NONE |
| FX Alt Lamp | EX Starter Engage | DX Emmision Lamp | CX +12x to Backup Lamps | BX Brake warn to park brake switch | AX Wiper Park |
| FW +12v to Ignition Sw | EW Brake Warning Switch to Warning Lamp | DW Screw | CW Screw | BW Horn | AW Heat / AC Blower |
| FV Wiper +12v Feed | EV Headlights - High Beam | DV Screw | CV Screw | BV Front Park Lamps | AV Front Window Wash |
| FU Wiper High | EU Right Turn Lamp | DU Headlights Low Beam | CU +12 From Ignition Switch (choke heat, idle relay) | BU Wiper Low | AU None |
| FT Does Not Exist | ET Upshift Lamp (4 Cyl Only) | DT +12 Trailer / Rear Defog Feed / Radio Backup Feed | CT Ground | BT None | AT Left Front Turn |
| FS Does Not Exist | ES None | DS None | CS None | BS None | AS None |
