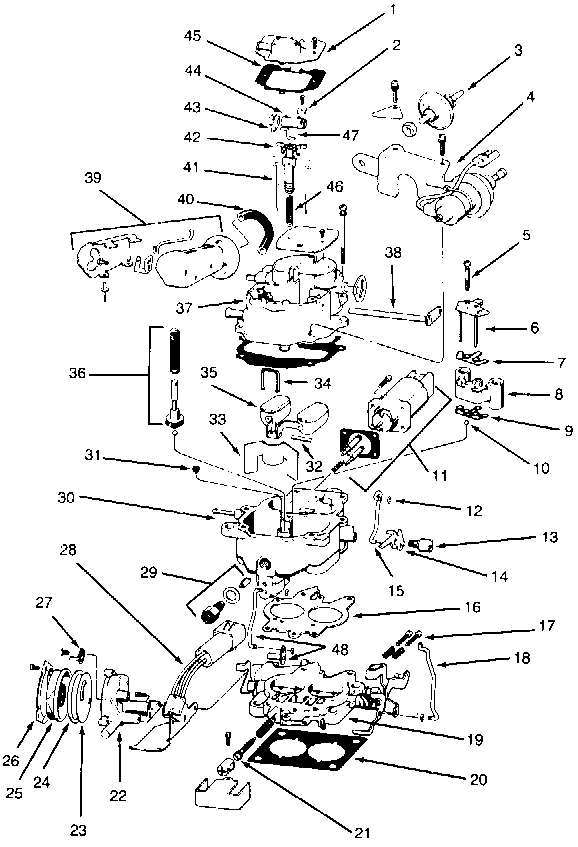

| 1. Rollover Check Valve and Bowl Vent 2. Lock 3. Dashpot 4. Solenoid and Bracket 5. Cluster Screw 6. Idle Fuel Pickup Tube 7. Gasket 8. Venturi Cluster 9. Gasket 10. Check Ball (Small) 11.Stepper Motor (Actuator) 12. Clip 13. Screw 14. Fast Idle Cam 15. Choke Link 16. Gasket 17. Screw 18. Pump Link 19. Throttle Body 20. Flange Gasket 21. Idle Mixture Screw 22. Choke Housing 23. Baffle 24. Gasket |
25. Choke Coil 26. Retainer 27. Lever 28. Wide Open Throttle Switch and Bracket 29. Needle and Seat Assembly 30. Main Body 31. Main Metering Jet 32. Pin 33. Baffle 34. Fulcrum Retainer 35. Float 36. Spring and Accelerator Pump Plunger 37. Air Horn 38. Accelerator Pump Lever 39. Choke Vacuum Diaphragm and Housing 40. Hose 41. Metering Rod 42. Vacuum Piston 43. Pump Arm 44. Rod Lifter 45. Gasket 46. Spring 47. S-Link 48. Choke Rod and Shaft |
