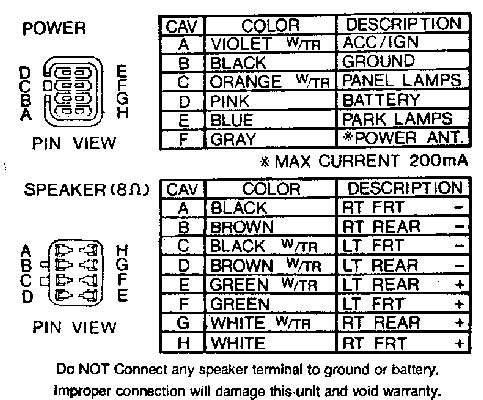

Here is a sticker that explains the connnections to the radio in an Eagle. I found it  attached to an ETR AM/FM/Cassette unit:

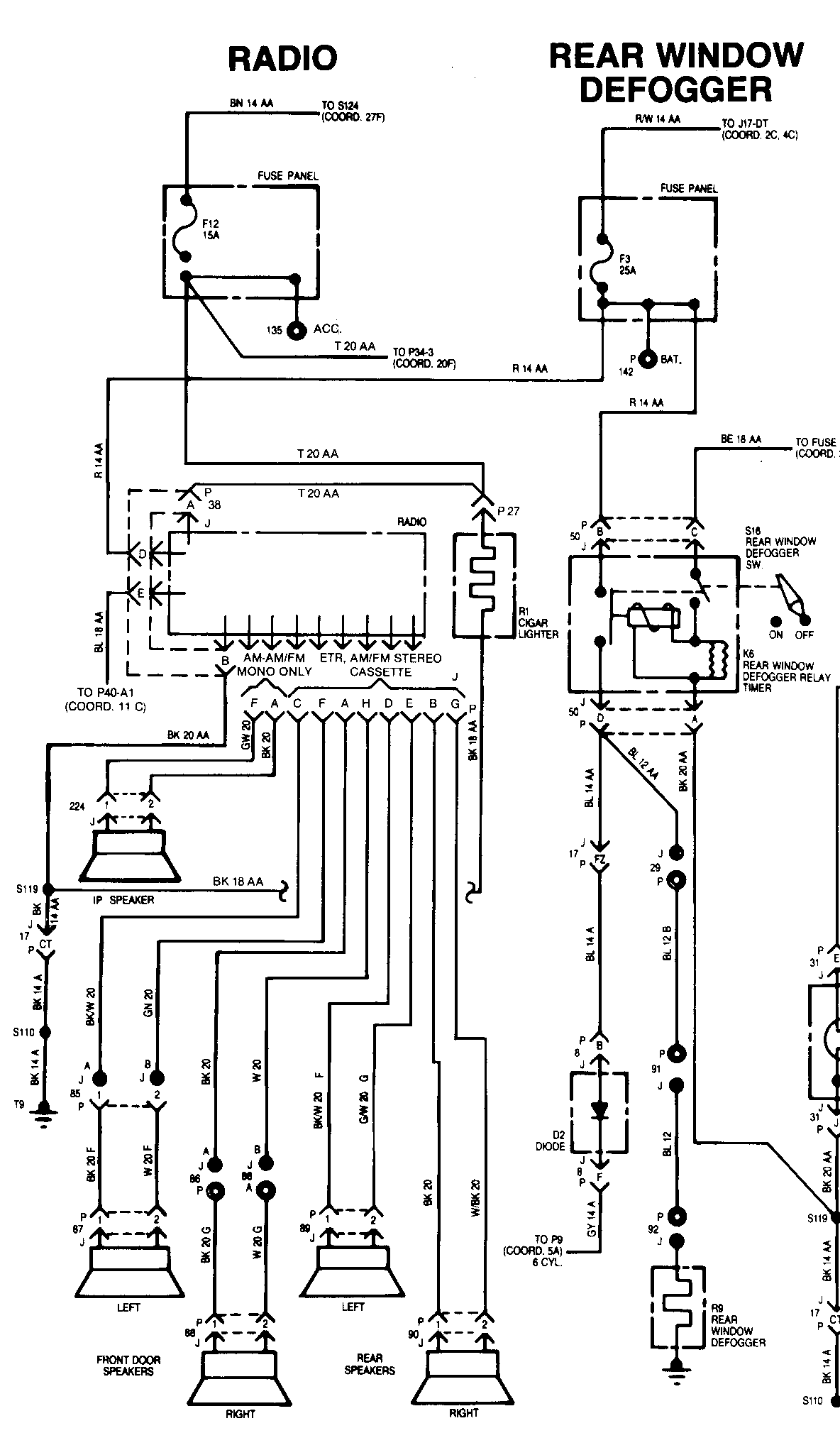

Here is the wiring diagram for the radio in Eagles.
